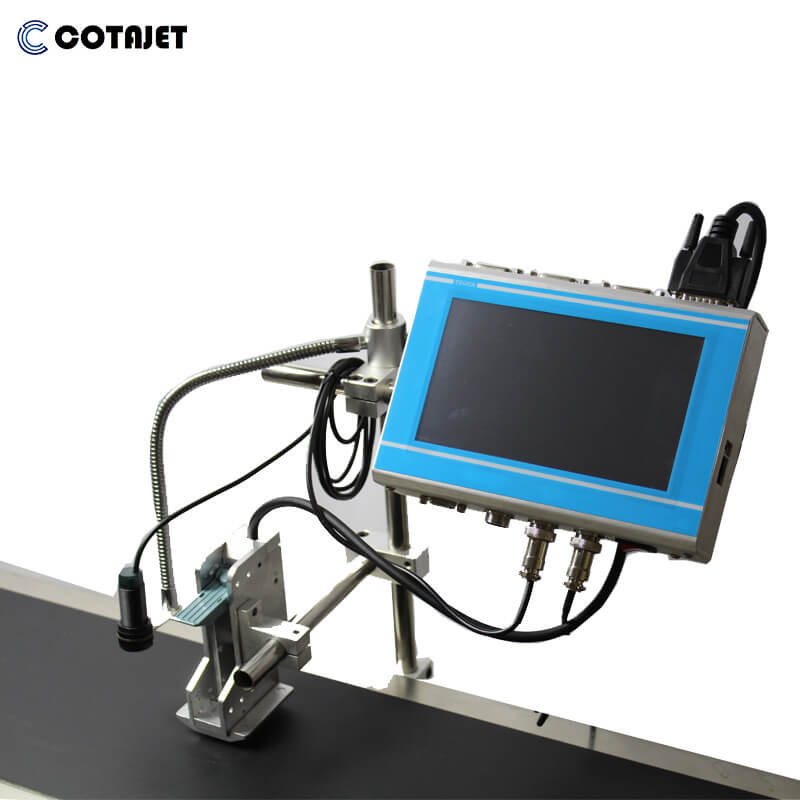

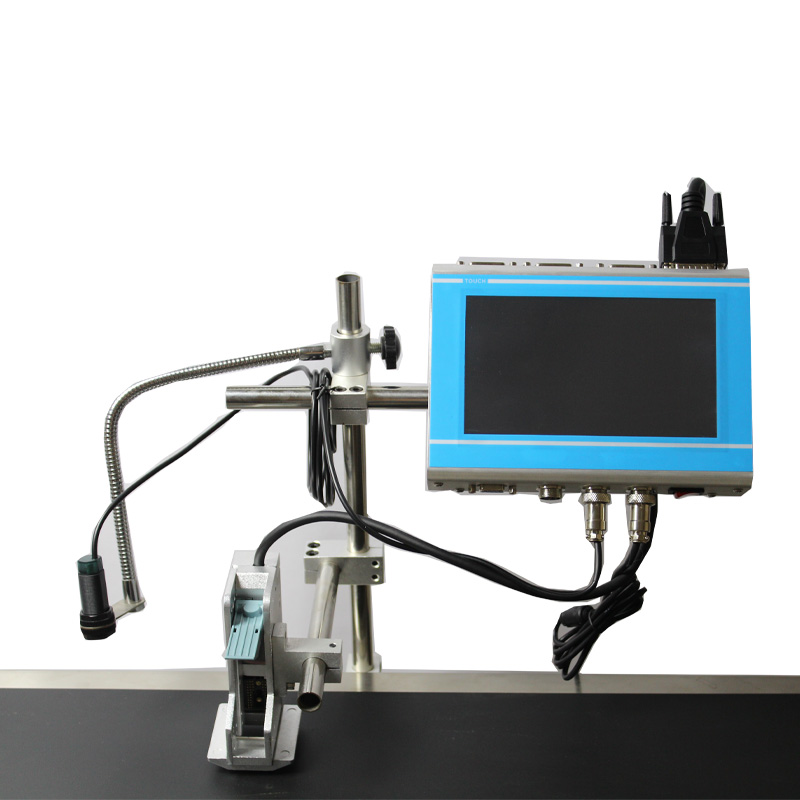

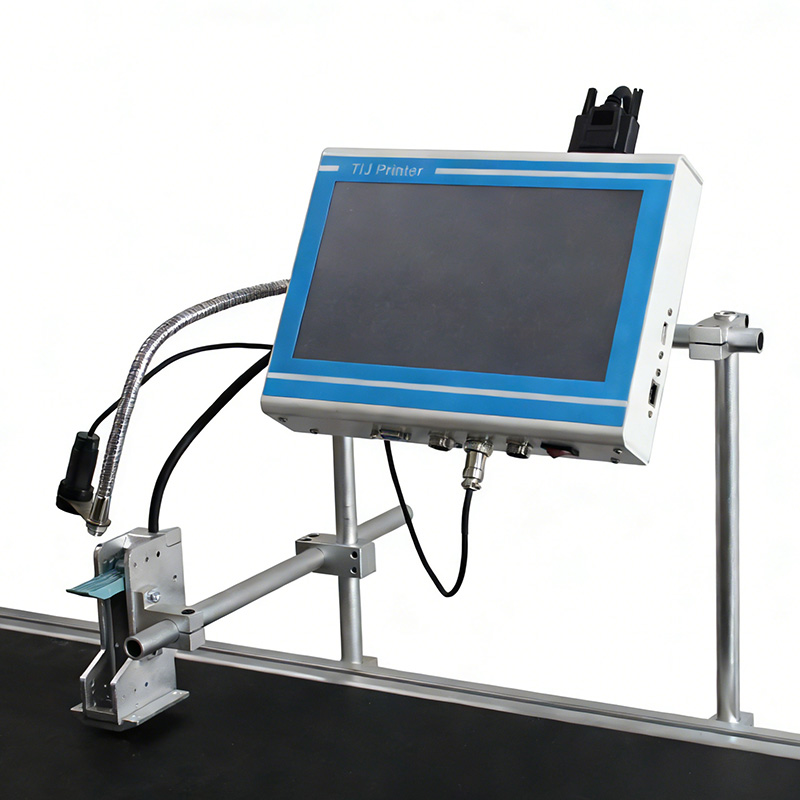

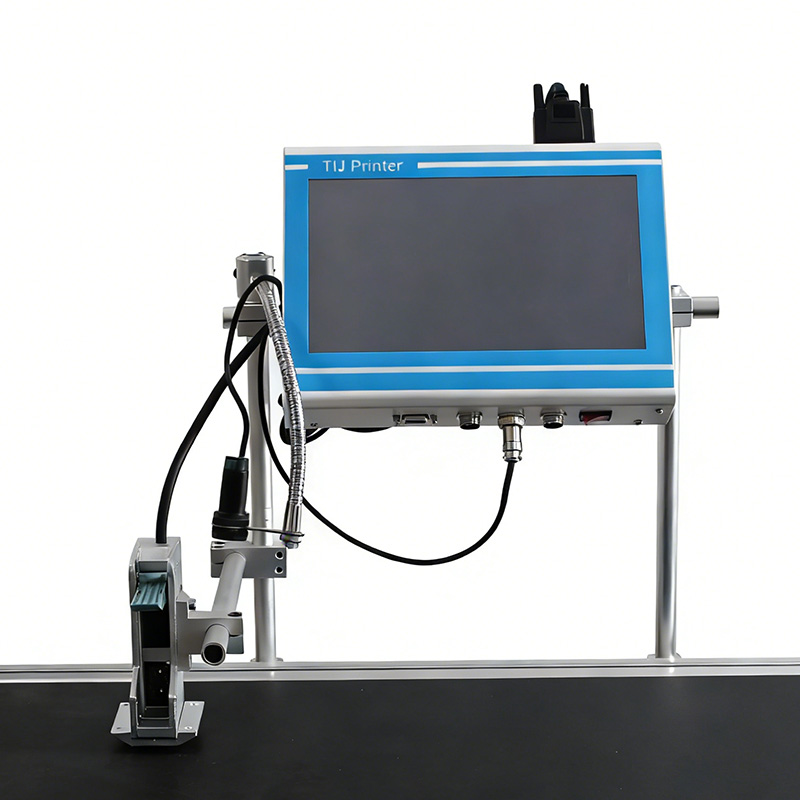

TIJ Inkjet Coding (1 head)
1.Nozzle Type:12.7MM&25.4mm (Interconversion)
2.High speed inkjet coding---40DPI(450M/min),150DPI(240M/min).300DPI(120M/min)
3.DPI linear flexible adjustment (longitudinal DPI 40-300DPI; transverse 40-999DPI)
4.Support RJ45 connect PC to printing EXCEL,PDF words.
5.Print height:12.7MM&25.4MM
Inkjet coder for GS1-128 Code marking and printing
Inkjet date coder for expiry date marking and printing
TIJ inkjet printer are used to print variable information, such as dates or batch codes, on individual products as they move along the production line – regardless of porosity, size, shape or texture.
Remote printer monitoring and support enables customers to access and control Linx coders anywhere, anytime and enables Linx to provide remote support to keep lines running.
Features of Thermal Inkjet Printer:
With concealed, easy-to-clean printheads, error-free touch-screen control and simple self-service capability,
Linx Printing Technologies provide a cost-effective and efficient solution compared to similar industrial inkjet printers on the market.
Reliable GS1 compliant solutions for all case and pallet labelling requirements.

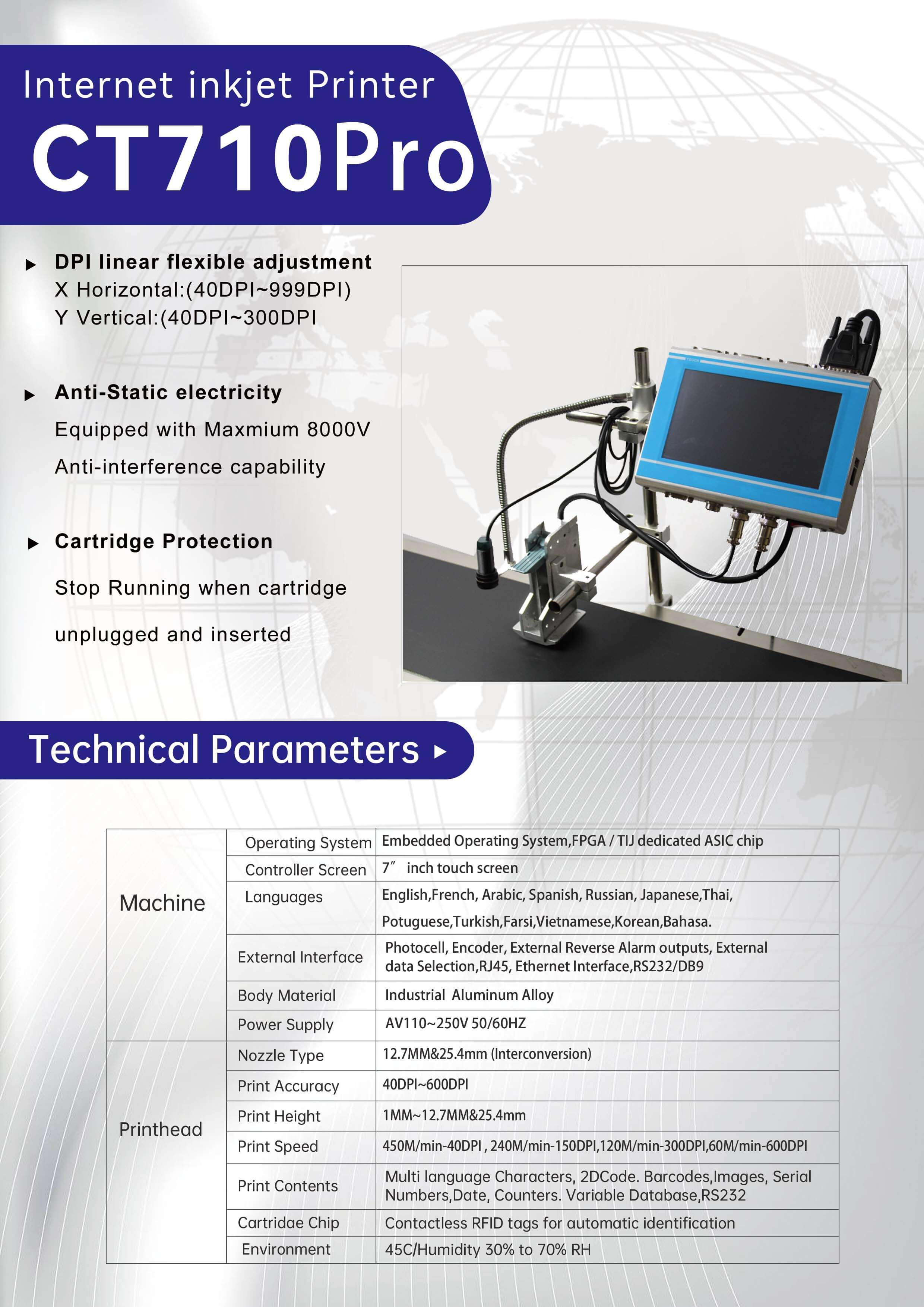

Printing And Machine Parameters
| 1 | Nozzle Type: | TIJ 12.7MM/25.4MM | 10 | Print Direction: | Side printing (upward and downward print optional) |
| 2 | Print Distance: |
X Horizontal:(40DPI-999DPI) Y Vertical(40dpi-300DPI) |
11 | Display: | 7-inch Color Touch Screen |
| 3 | Print Speed: | 450M/min 40DPI,120M/min 300DPI,60M/min 600DPI | 12 | Power: | AC100V-260V,50-60Hz, Output DC 12V |
| 4 | Ink Type: | Aqueous or Solvent based 42ml Cartridges CIS S | 13 | Humidity : | 10-90% Non-condensing |
| 5 | Ink Color: | Black, White, Red, Yellow, Blue, Green, Stealth, UV readable | 14 | Temperature: | 5-60°C |
| 6 | Cartridge Encryption: | Encryption and Unencrytion will be optional | 15 | Data Interface: | RS232, Ethernet, USB memory, Text communication,JSON |
| 7 | Print Fonts: | The built-in various font and horizontal bar, vertical bar, the dot-matrix, bold font can be free change. | 16 | Print Content: | Real Date, Real-time, Photo, Letter, Shift group, Serial number, Batch number, Lot number, Bar code, and 2D code can be freely printed,GS1-Code |
| 8 | Print Direction: | Side printing (upward and downward print optional) | 17 | Operating System: | Embedded Operating System |
| 9 | Memory: | More than 1000pcs text can be storage | 18 | External Interface: | Photocell, Encoder, External Reverse/Inverse control, Alarm outputs |
